ZY-XF-100

150KG Class Heavy-Payload Firefighting UAV

Queto

Catalog

150KG Max Payload. 60 Minutes Flight Time. The Ultimate Heavy-Lift Platform for Large-Scale Rescue

Introduction

150KG Massive Payload: The highest payload capacity in the series, capable of lifting heavy-duty industrial equipment and large-volume extinguishing agents.
60-Minute Extended Endurance: Despite its size, it maintains a 1-hour flight time, ensuring mission completion without frequent recalls.
Dual-Tank Fire Suppression: Unique capability to mount two 40KG tanks simultaneously (Total 80KG), doubling the extinguishing efficiency in a single sortie.
8 Modular Mounting Modes: Supports the widest range of tactical attachments, including heavy-duty hose launching and multi-projectile systems.

150 KG

Maximum Payload

60 min

Maximum Flight Time

500 m

Maximum Flight Altitude

7 level

Wind Resistance Ability

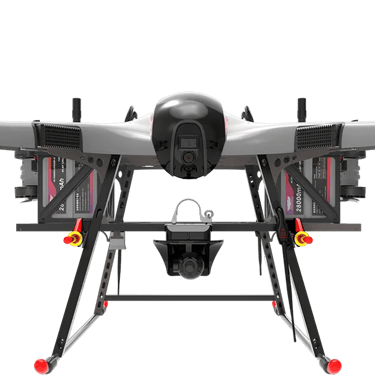

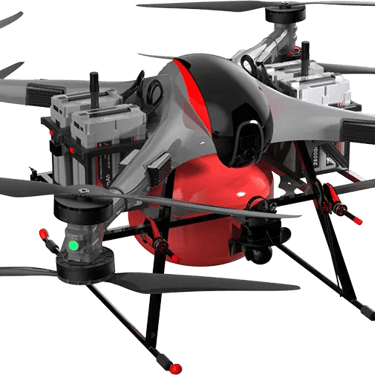

Defender ZY-XF100 Heavy-Payload Firefighting UAV

The Ultimate Heavy-Lift Platform: 150KG Payload / 60 Minutes Flight Time

Redefining Aerial Rescue Capability

The Defender ZY-XF100 is the most powerful heavy-lift drone in the series, engineered for extreme industrial and emergency scenarios. It shatters previous limitations with a massive 150KG maximum payload and a 60-minute extended flight time. Designed for large-scale operations, it provides the lifting power of a light helicopter with the deployment agility of a UAV, making it the definitive choice for forest fire suppression and high-rise material transport.

Max Payload: 150 KG
Max Flight Time: 60 Minutes
Max Take-off Weight: 280 KG
Wind Resistance: Level 7

Modular Mission Capabilities

The ZY-XF100 features a heavy-duty mounting system capable of carrying industrial-grade equipment that smaller drones cannot lift.

1. Dual-Mount Tank Suppression (Exclusive Feature)

Capability: Unlike standard drones, the XF100 features a newly designed mounting structure allowing for the simultaneous attachment of two 40KG dry powder/water mist tanks.
Performance: Delivers a total of 80KG of extinguishing agent in a single run, doubling the efficiency of fire suppression operations.
Advantage: Flexible selection of dry powder or water mist depending on the fire type (Class A, B, C).

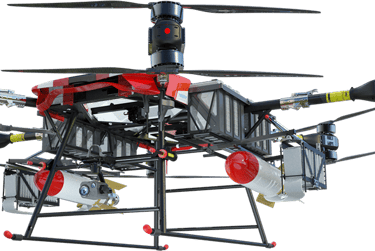

2. High-Altitude Hose Firefighting

Capability: Equipped with a heavy-duty hose launch module to lift 50mm fire hoses to extreme heights.
Performance: Supports a towing height of 300m and a jet flow rate of 1800L/min.
Feature: Includes a 270° water outlet nozzle for precise aiming at high-rise fire sources.

3. Heavy Projectile Launch System

Fire Extinguishing Bombs: Capable of launching 4 units of 8kg fire extinguishing projectiles to target forest fires from a safe distance.
Supply Rescue: Can launch heavy supply pods containing gas masks, fire suits, and medical kits to trapped personnel.

4. Tactical Breaching & Recon

Window Breaker: Independent window-breaking mechanism capable of shattering 12mm hollow tempered glass, creating entry points for suppressants.
Optical Zoom: Includes a 10x visible zoom camera for real-time damage assessment and targeting.

Why Choose the XF-100?

🚀 Unmatched 150KG Payload: The highest capacity in its class, allowing for the transport of heavy generators, communication base stations, or massive volumes of retardant.
⏱️ 60-Minute Endurance: Optimized power management allows this 280kg beast to fly for an hour, ensuring mission completion without frequent battery swaps.
🏗️ Industrial Stability: Built on a large 1950mm folded wheelbase, it offers superior stability for precision operations like window breaking or heavy lifting in turbulent environments.

Standard Accessories Configuration

Professional-grade ground support equipment ensures continuous operation in the field.

1. Handheld Ground Station

High-Bright Display: Features a 7-inch screen with 2000nit brightness and 1920*1200 resolution, ensuring clear visibility even under strong sunlight.
Field Durability: Built with IP53 protection, allowing operation in complex environments.
Long Endurance: Supports up to 6 hours of continuous operation with integrated alarm functions and UAV status reminders.

2. Intelligent Mobile Charging Station

High-Power Charging: Delivers 1500W charging power per piece, capable of fast-charging 2 polymer lithium batteries simultaneously.
Smart Maintenance: Equipped with battery maintenance functions and accurate charging algorithms to extend battery lifespan.
Rapid Turnaround: Designed for fast charging mode (≤1h) to minimize downtime during rescue missions.

3. Intelligent Lithium Battery

Smart Management: Features an LED display for real-time power level and fault indication.
Safety Monitoring: Integrated with battery life tracking, high/low-temperature warnings, and data export capabilities for safety analysis.
Capacity: High-density design (Rated capacity: 28000mAh standard reference) tailored for heavy-lift endurance.

Optional Functional Accessories

Expand your mission capabilities with these specialized modular attachments.

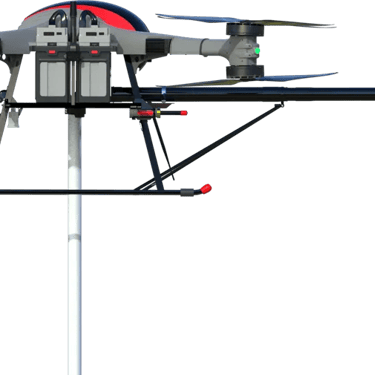

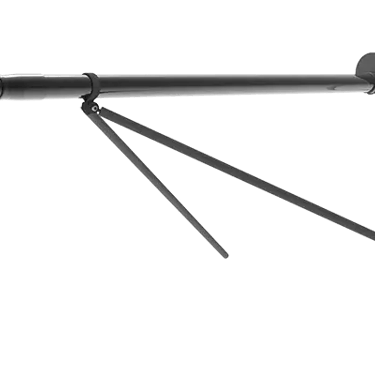

1. Dry/Water Spray Pipe Assembly

Structure: 4-section telescopic carbon fiber rod.
Reach: Full extended size of 3 Meters allows for safe standoff distance from the fire source.
Performance: Delivers an effective spraying range of ≥15 meters.

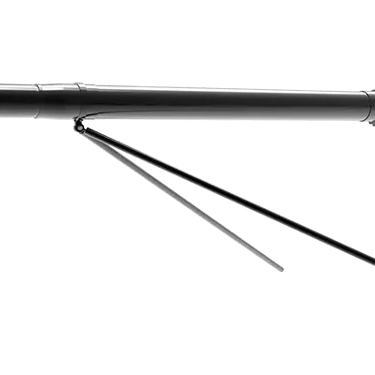

2. DN50 Hose Assembly

Structure: 3-section telescopic water spraying rod designed for high-flow liquid delivery.
Reach: Full extended size of 2.2 Meters.
Performance: Achieves an effective spraying range of ≥25 meters, ideal for high-rise exterior suppression.

3. Airdropped Dry Powder Projectile

Capacity: Standard 45L filling volume with ultra-fine dry powder.
Coverage: A single unit covers a fire area of 200m².
Activation: Features electronic delay blasting for precise airburst timing.

4. Airdropped Water-Based Projectile

Capacity: Standard 45L filling volume with water-based fire extinguishing agent.
Coverage: A single unit covers 50-80m².
Environment: Storage temperature range from 5°C to 50°C.

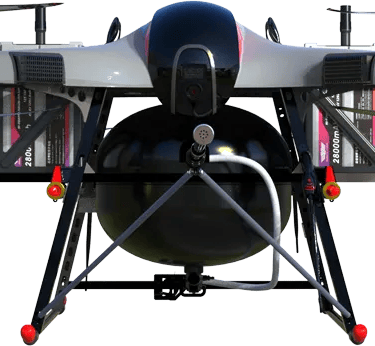

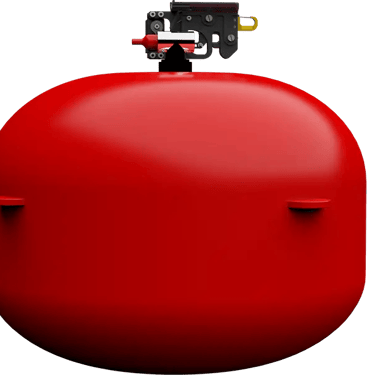

5. Powder-Based Tank

Payload: 40KG standard weight filled with ultra-fine dry powder.
Pressure: Working pressure of ≥2.0MPA ensures powerful discharge.
Range: Nozzle spraying distance of 15 meters.

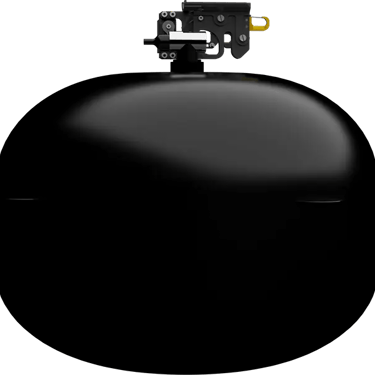

6. Water-Based Tank

Payload: 40KG standard weight filled with water-based extinguishing agent.
Pressure: High working pressure of ≥2.0MPA.
Application: Suitable for suppressing Class A fires in complex terrain.

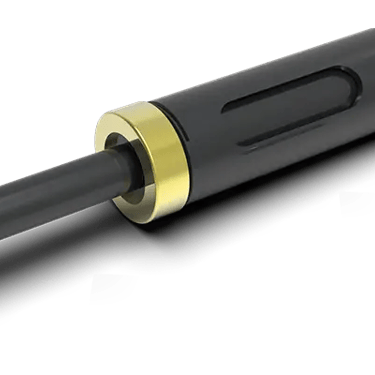

7. Window Breaker

Power: Capable of shattering 12-10A-12mm hollow tempered glass.
Safety: Equipped with a Level 1 physical switch and Level 2 electronic software switch to prevent accidental triggering.
Function: Essential for creating entry points for fire suppressants or rescue projectiles.

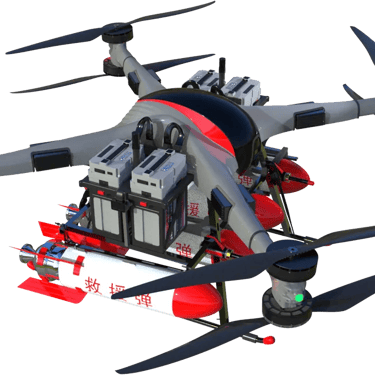

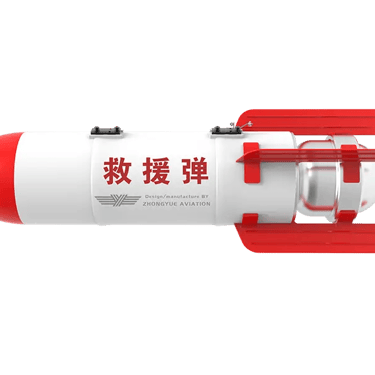

8. Supplies Rescue Projectile

Payload: Can carry a variety of emergency supplies including gas masks, glass fiber fire blankets, and heat protective clothing.
Delivery: Designed for horizontal launch to accurately deliver life-saving gear through windows to trapped individuals.

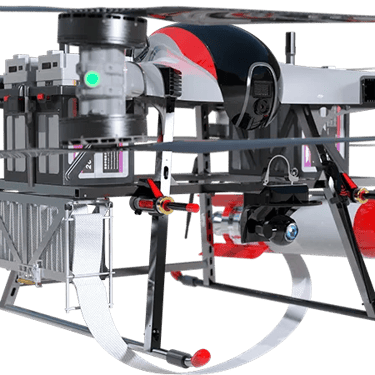

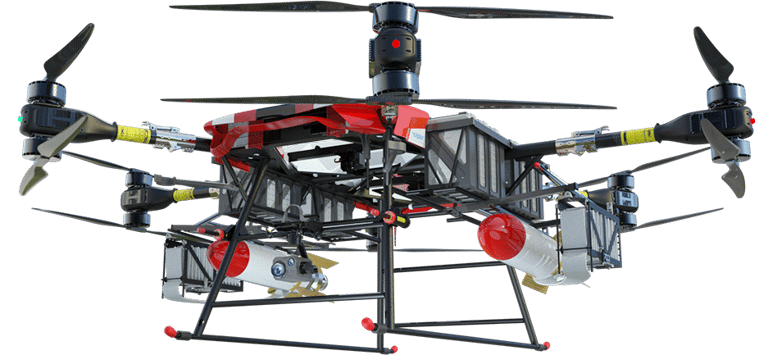

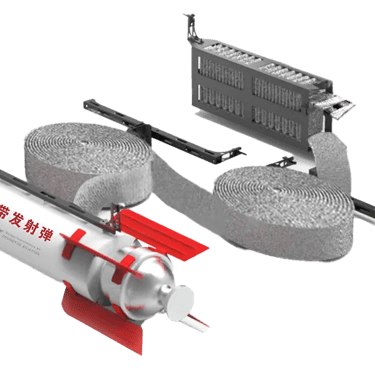

9. Water Hose Launch Projectile

Capacity: Capable of carrying and deploying up to 200 meters of water hose.
Efficiency: Rapidly connects to ground water supply, solving the logistical challenge of laying hoses vertically.

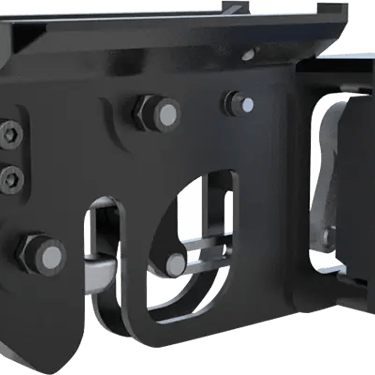

10. Heavy-Duty Airdropper

Capacity: Supports a bearing weight of up to 55KG.
Speed: Reaction time of ≤0.5s, allowing for instant payload release.
Current: Rated current 1.0A ensuring compatibility with the drone's power system.
