ZY-XF-RL

Introduction

• VTOL Versatility (Vertical Take-Off & Landing): Combines the convenience of a multi-rotor with the efficiency of a fixed-wing aircraft. Takes off anywhere without needing a runway.

• 100-Minute Ultra-Long Endurance: Aerodynamically optimized design enables flight times of up to 100 minutes, covering vast areas in a single mission.

• 100KM Operation Radius: Capable of long-range cruising up to 100km, making it the ideal choice for pipeline inspection, border patrol, and large-scale mapping.

• Eagle-Eye Reconnaissance: Equipped with a 3-axis stabilized gimbal and 30x optical zoom (optional), providing stable, high-definition visuals from high altitudes.

• Intelligent Navigation: Features high-precision GPS/RTK positioning and autonomous flight path planning for automated, hands-free patrol missions.

4500g

Maximum Payload

100 min

Maximum Flight Time

100 km

Cruise Range

25m/s

Maximum Flight Speed

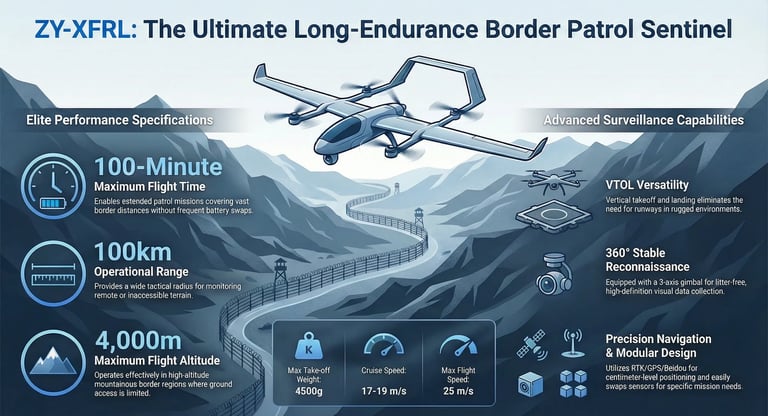

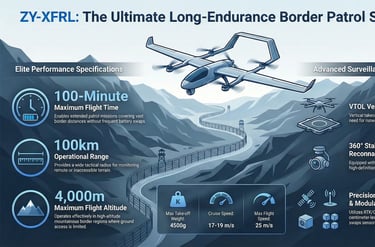

Defender ZY-XFRL Long-Endurance VTOL Fixed-Wing UAV

The Eye in the Sky: 100KM Range / 100 Minutes Flight Time

Vertical Takeoff Convenience. Fixed-Wing Efficiency.

The Defender ZY-XFRL represents a paradigm shift in aerial surveillance. By combining the vertical takeoff and landing (VTOL) capabilities of a multi-rotor with the high-speed cruise efficiency of a fixed-wing aircraft, it solves the "runway dependency" problem of traditional drones. Engineered for large-scale operations, it delivers an impressive 100 minutes of flight time and a 100km cruising range, making it the ultimate solution for pipeline inspection, border security, and forestry mapping.

• Max Flight Time: 100 Minutes

• Cruising Range: 100 KM

• Max Speed: 25 m/s (90 km/h)

• Take-off Weight: 4.5 KG (Lightweight & Portable)

Core Mission Capabilities

The ZY-XFRL is designed for "Beyond Visual Line of Sight" (BVLOS) missions where endurance and range are critical.

1. VTOL: Runway-Free Operation

• Capability: Features a composite aerodynamic layout with quad-rotors for vertical lift and a fixed wing for horizontal flight.

• Benefit: Can take off and land vertically in narrow spaces like mountain ridges, ship decks, or dense forest clearings, requiring no runway or catapult.

• Scenario: Ideal for emergency launches in rugged terrain where traditional fixed-wing drones cannot operate.

2. 100KM Strategic Patrol Radius

• Performance: Optimized aerodynamic design and high-density EPP materials allow for a cruising speed of 17-19m/s and a range of up to 100km.

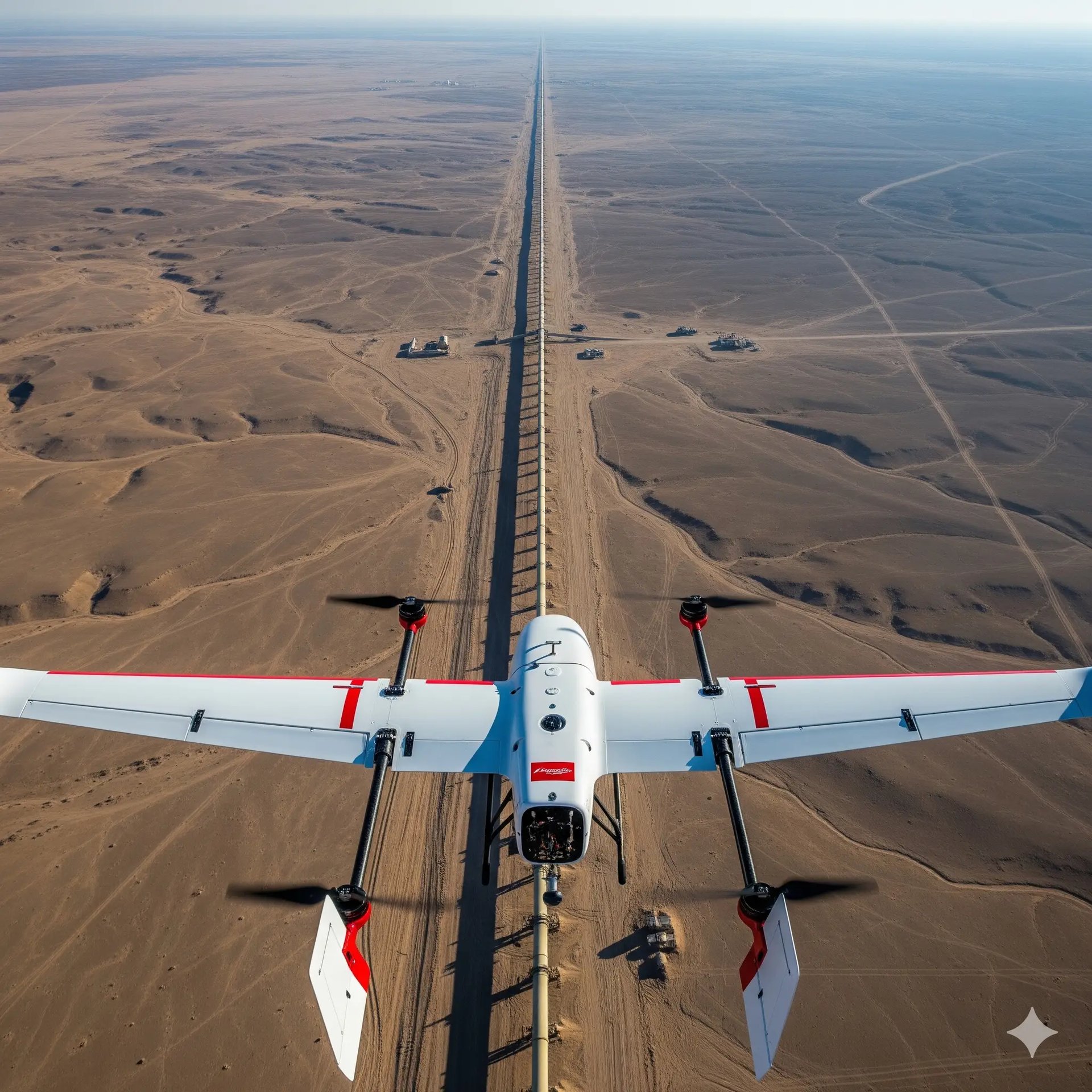

• Application: Perfect for inspecting long-distance infrastructure such as oil & gas pipelines, power transmission lines, and border fences in a single flight.

3. High-Precision Reconnaissance

• Payload: Supports a max mission load of 800g, typically equipped with a 3-axis stabilized gimbal camera.

• Stability: The 3-axis gimbal eliminates jitter during high-speed flight, ensuring rock-solid video transmission for detailed ground analysis.

• Navigation: Integrated with centimeter-level RTK/GPS positioning, enabling precise automated flight paths and accurate geotagging for mapping.

4. Intelligent Autonomous Flight

• Automation: Supports fully autonomous missions, including auto-takeoff, waypoint navigation, and auto-landing.

• Safety: Features redundant backup algorithms and "return-to-home" functions to ensure aircraft safety even in complex electromagnetic environments.

Why Choose the XFRL?

• 🦅 100-Minute Endurance: Outlasts standard quadcopters (which typically fly for 20-30 mins) by over 300%, maximizing data collection per launch.

• 🚀 Deploy Anywhere: The modular, plug-and-play structure allows for rapid assembly and disassembly, making it easy to transport in a standard vehicle.

• 🛡️ Industrial Durability: Constructed from aviation-grade EPP and carbon fiber, ensuring a lightweight yet robust airframe capable of withstanding field abuse.

Standard Accessories Configuration

Professional-grade ground support equipment ensures continuous operation in the field.

1. Handheld Ground Station

• High-Bright Display: Features a 7-inch screen with 2000nit brightness and 1920*1200 resolution, ensuring clear visibility even under strong sunlight.

• Field Durability: Built with IP53 protection, allowing operation in complex environments.

• Long Endurance: Supports up to 6 hours of continuous operation with integrated alarm functions and UAV status reminders.

2. Intelligent Mobile Charging Station

• High-Power Charging: Delivers 1500W charging power per piece, capable of fast-charging 2 polymer lithium batteries simultaneously.

• Smart Maintenance: Equipped with battery maintenance functions and accurate charging algorithms to extend battery lifespan.

• Rapid Turnaround: Designed for fast charging mode (≤1h) to minimize downtime during rescue missions.

3. Intelligent Lithium Battery

• Smart Management: Features an LED display for real-time power level and fault indication.

• Safety Monitoring: Integrated with battery life tracking, high/low-temperature warnings, and data export capabilities for safety analysis.

• Capacity: High-density design (Rated capacity: 28000mAh standard reference) tailored for heavy-lift endurance.
