ZY-XF-R

Introduction

• High-Speed Tactical Response: Capable of reaching a top speed of 106 km/h, ensuring rapid arrival at emergency scenes for instant intelligence gathering.

• 60-Minute Industrial Endurance: Provides a steady 60-minute flight time, allowing for thorough, large-scale inspections without frequent battery swaps.

• IP65 All-Weather Protection: Specifically engineered with an IP65-rated dust and water-resistant airframe to operate reliably in harsh industrial environments and sudden weather changes.

• Precision Intelligence: Features a starlight sensor and 6x optical zoom (optional) to deliver crystal-clear, high-definition visuals even in low-light conditions.

• 10KM Secure Control Link: Maintains a stable and secure command and data transmission link over a 10km radius, ensuring operator safety during hazardous reconnaissance.

• Dual-Mode GNSS Navigation: Utilizes GPS/Beidou dual-mode receiving technology to ensure high-precision positioning and mission reliability in complex electromagnetic areas.

2000g

Maximum Payload

60 min

Maximum Flight Time

40 km

Maximum Range

106km/h

Max Speed

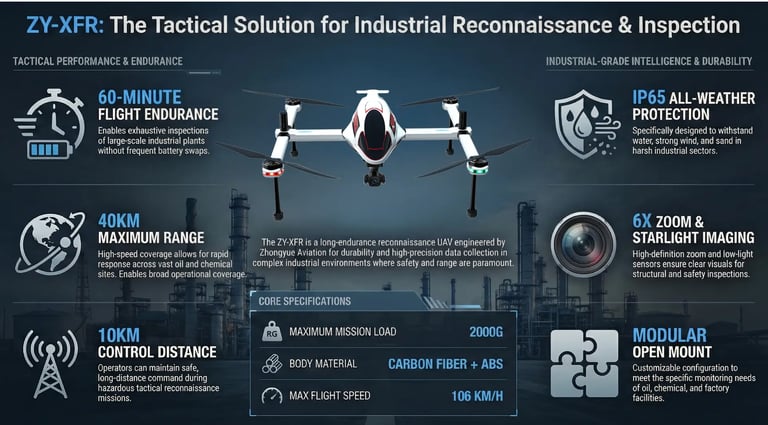

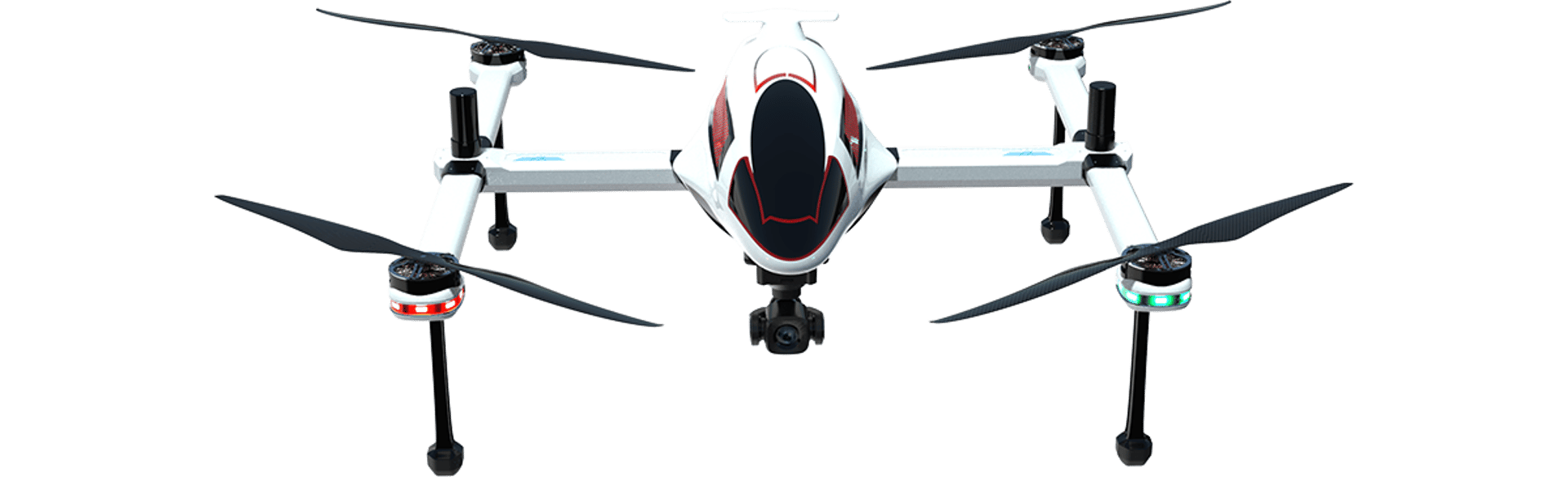

Defender ZY-XFR Tactical High-Speed Reconnaissance UAV

Speed Meets Intelligence: 106 KM/H Max Speed / IP65 All-Weather Protection

Rapid Deployment. Precision Intelligence. Industrial Durability.

The Defender ZY-XFR is an industrial-grade tactical reconnaissance platform engineered for high-speed missions where time is the critical factor. Built with a lightweight yet robust carbon fiber and ABS composite body, it delivers an extraordinary top speed of 106 km/h, allowing it to reach emergency scenes or remote inspection points in a fraction of the time required by standard drones. Whether for petrochemical safety, border security, or rapid incident response, the XFR is the ultimate "First Responder" in the air.

• Max Flight Speed: 106 km/h

• Flight Endurance: 60 Minutes

• Operating Radius: 40 KM

• Control Distance: 10 KM

Core Mission Capabilities

The ZY-XFR is optimized for rapid intelligence gathering and high-frequency industrial patrolling.

1. Tactical High-Speed Response

• Capability: The aerodynamically optimized multi-rotor design allows for a maximum flight speed of 106 km/h.

• Benefit: In industrial emergencies, such as gas leaks or fire outbreaks, the XFR can arrive at the scene within seconds to provide live visual data to decision-makers.

• Scenario: Perfect for "First-on-Scene" reconnaissance in large-scale refineries or remote pipeline segments.

2. IP65 All-Weather Operational Reliability

• Protection: Features a fully sealed airframe with an IP65 ingress protection rating.

• Benefit: Capable of operating in harsh environments including heavy dust, sandstorms, and sudden rainfall, where other drones would fail.

• Environment: Built to withstand the corrosive and demanding conditions of offshore rigs and chemical plants.

3. Precision Intelligence & Low-Light Recon

• Optical Suite: Equipped with a starlight sensor and optional 6x to 10x optical zoom camera gimbals.

• Visibility: Provides crystal-clear, high-definition video even in extremely low-light conditions, ensuring 24/7 situational awareness.

• Stabilization: The 3-axis stabilized gimbal maintains a steady image even at high cruising speeds or in turbulent wind conditions.

4. Secure Long-Range Communication

• Connectivity: Integrated with a high-bandwidth data link providing a secure control radius of up to 10km.

• Navigation: Uses dual-mode GPS/Beidou receiving technology for high-precision positioning and autonomous path planning.

Why Choose the Defender XFR?

• ⚡ High-Speed Superiority: At 106 km/h, it covers the same area as standard drones in half the time, significantly increasing patrol efficiency.

• 🛡️ IP65 Industrial Grade: Not just "water-resistant" but truly dust-proof and jet-water protected for the toughest industrial zones.

• 📦 Portable & Agile: With a standard takeoff weight of just 2kg, it is highly portable and can be deployed by a single operator in under 2 minutes.

• 🦅 60-Min Persistent Patrol: Optimized power management allows for a full hour of continuous flight, ideal for exhaustive perimeter security.

Standard Accessories Configuration

Professional-grade ground support equipment ensures continuous operation in the field.

1. Handheld Ground Station

• High-Bright Display: Features a 7-inch screen with 2000nit brightness and 1920*1200 resolution, ensuring clear visibility even under strong sunlight.

• Field Durability: Built with IP53 protection, allowing operation in complex environments.

• Long Endurance: Supports up to 6 hours of continuous operation with integrated alarm functions and UAV status reminders.

2. Intelligent Mobile Charging Station

• High-Power Charging: Delivers 1500W charging power per piece, capable of fast-charging 2 polymer lithium batteries simultaneously.

• Smart Maintenance: Equipped with battery maintenance functions and accurate charging algorithms to extend battery lifespan.

• Rapid Turnaround: Designed for fast charging mode (≤1h) to minimize downtime during rescue missions.

3. Intelligent Lithium Battery

• Smart Management: Features an LED display for real-time power level and fault indication.

• Safety Monitoring: Integrated with battery life tracking, high/low-temperature warnings, and data export capabilities for safety analysis.

• Capacity: High-density design (Rated capacity: 28000mAh standard reference) tailored for heavy-lift endurance.
