ZY-XF-35

Introduction

• The Golden Ratio (50KG/50Min): Perfectly balances a 50KG heavy payload with 50 minutes of endurance, bridging the gap between light reconnaissance and heavy transport drones.

• 6-in-1 Tactical Versatility: A single platform supports rapid switching between water hoses, fire bombs, pressure tanks, and window breakers, adapting to any crisis instantly.

• Urban Combat Ready: Features Level 7 wind resistance to ensure stable hovering and precise aiming in turbulent high-rise building canyons.

• All-Weather Reliability: Built with an IP54-rated metal fuselage, capable of operating in harsh environments from -20°C to 55°C.

• Precision Rescue: Equipped with dual-light pods and laser obstacle avoidance, enabling safe operation in complex, smoke-filled fire scenes.

50 KG

Maximum Payload

50 min

Maximum Flight Time

500 m

Maximum Flight Altitude

7 level

Wind Resistance Ability

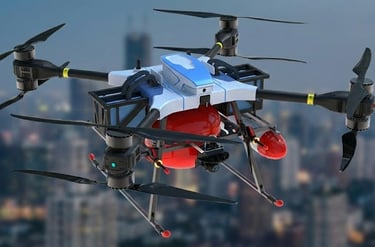

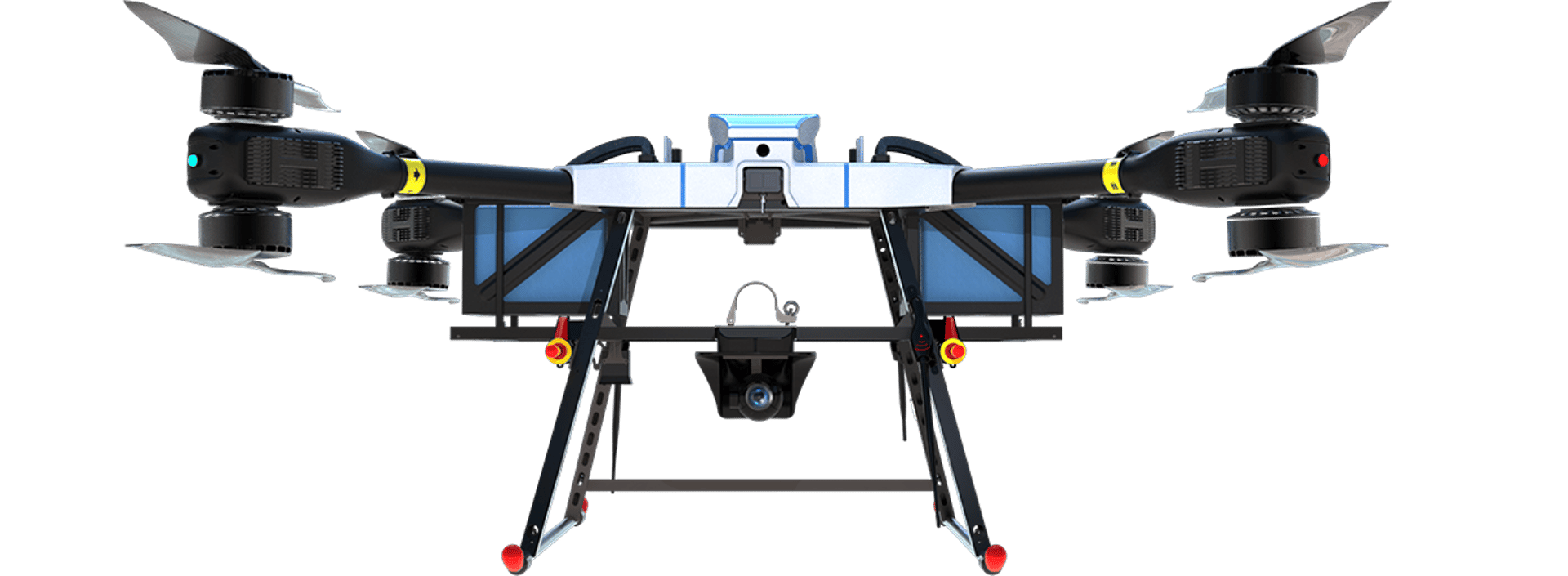

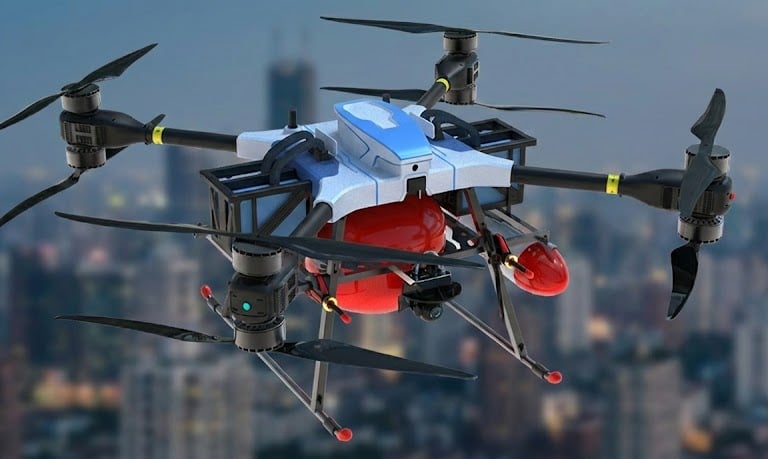

Defender ZY-XF-35: Long-Endurance Firefighting & Rescue UAV

The Perfect Balance of Power and Time: 50KG Payload / 50 Minutes Flight Time

operations, it combines a massive 50KG maximum payload with an impressive 50-minute endurance. This extended flight time allows for deeper penetration into fire zones and longer search-and-rescue windows without frequent battery swaps. Whether for high-rise suppression or long-range supply delivery, the XF-35 ensures you have the time and power to complete the mission.

• Max Payload: 50 KG

• Max Flight Time: 50 Minutes

• Operation Range: 5 KM

• Wind Resistance: Level 7

Modular Mission Capabilities

The ZY-XF35 features a versatile mounting system compatible with six specialized firefighting and rescue modules, allowing for rapid field reconfiguration.

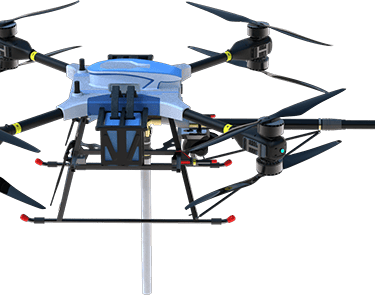

1. High-Rise Firefighting (Tethered Hose)

• Function: Connects to ground water trucks via a high-strength hose to suppress fires in tall buildings.

• Performance: Reaches an operating height of ≥120m with a powerful flow rate of 1800L/min.

• Feature: Equipped with a 270° water outlet function for precise aiming at fire sources.

2. Forest & Remote Fire Suppression (Bomb Launcher)

• Function: Deploys fire extinguishing bombs for remote areas or forest fires.

• Capacity: 35L volume covering an area of approximately 150m².

• Safety: Features a dual safety switch and drawer-type reloading for rapid operation.

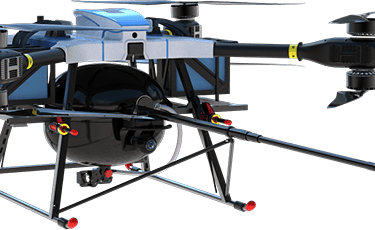

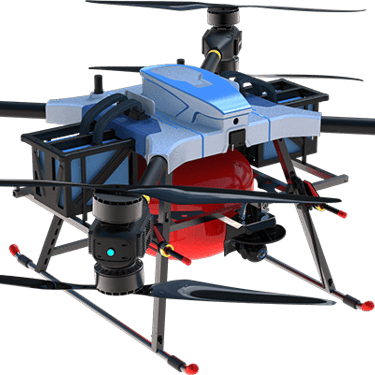

3. Mountain/Chemical Fire (Pressure Tank)

• Function: Sprays dry powder or liquid agents on complex terrains like cliffs or industrial plants.

• Spec: 30KG tank capacity with a 15m nozzle range.

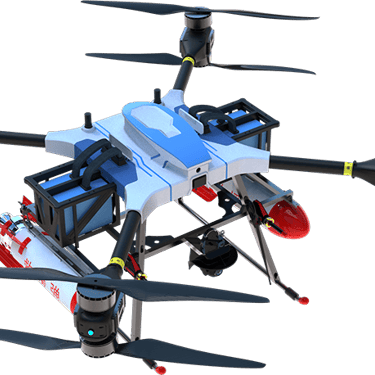

4. Emergency Rescue & Supply Drop

• Supply Transport: Delivers up to 35KG of food, medical kits, or equipment to isolated victims.

• Rescue Projectile: Horizontally launches safety ropes or self-rescue devices to assist trapped personnel.

Why Choose the XF-35?

• 🌪️ Level 7 Wind Resistance: Large 1860mm wheelbase and powerful propulsion ensure stability in turbulent environments.

• 🔋 50-Minute Endurance: High-density 44000mAh*4 battery array provides the flight time needed for thorough search and rescue (SAR) missions.

• 🛡️ Rugged Design: IP54 protection rating and one-piece metal body for operation in harsh weather (-20°C to 55°C).

Standard Accessories Configuration

Professional-grade ground support equipment ensures continuous operation in the field.

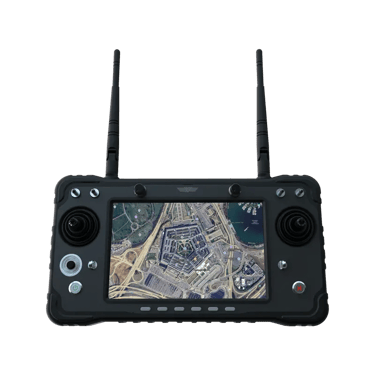

1. Handheld Ground Station

• High-Bright Display: Features a 7-inch screen with 2000nit brightness and 1920*1200 resolution, ensuring clear visibility even under strong sunlight.

• Field Durability: Built with IP53 protection, allowing operation in complex environments.

• Long Endurance: Supports up to 6 hours of continuous operation with integrated alarm functions and UAV status reminders.

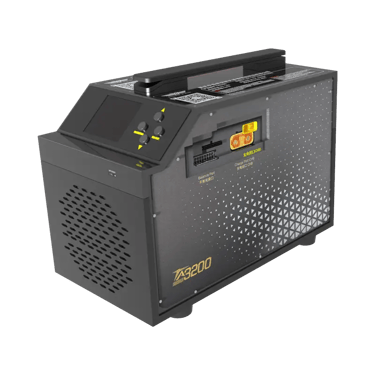

2. Intelligent Mobile Charging Station

• High-Power Charging: Delivers 1500W charging power per piece, capable of fast-charging 2 polymer lithium batteries simultaneously.

• Smart Maintenance: Equipped with battery maintenance functions and accurate charging algorithms to extend battery lifespan.

• Rapid Turnaround: Designed for fast charging mode (≤1h) to minimize downtime during rescue missions.

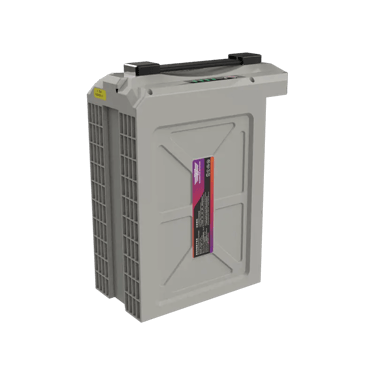

3. Intelligent Lithium Battery

• Smart Management: Features an LED display for real-time power level and fault indication.

• Safety Monitoring: Integrated with battery life tracking, high/low-temperature warnings, and data export capabilities for safety analysis.

• Capacity: High-density design (Rated capacity: 28000mAh standard reference) tailored for heavy-lift endurance.
